STRAIGHT CENTRIFUGAL PUMPS 56J FRAME

AMT-STRAIGHT CENTRIFUGAL PUMPS | AMT-HIGH HEAD STRAIGHT CENTRIFUGAL PUMPS | AMT-STAINLESS STEEL STRAIGHT CENTRIFUGAL PUMPS | AMT-STRAIGHT CENTRIFUGAL PEDESTAL PUMPS
STRAIGHT CENTRIFUGAL PUMPS

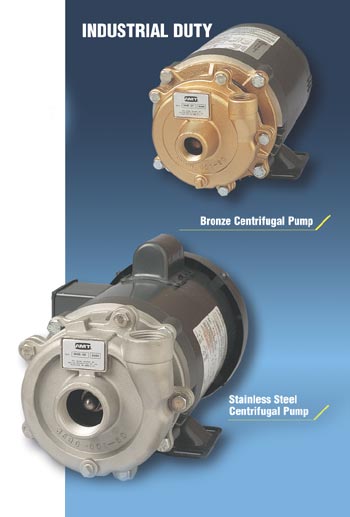

  • Available in : Investment Cast 316 Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller
  • Mechanical Seal Options: Buna-N, VitonĘ and Silicon Carbide
  • 1/2" to 1-1/4" NPT Port sizes, Discharge Port Rotates in 90° Increments
  • Open Drip Proof (ODP) or Totally Enclosed Fan Cooled(TEFC) 56J Motors
  • 1/3 HP to 2 HP Single and Three Phase, 3450 RPM Motors
  • Delivers up to 90 GPM and 28 PSI

This line of AMT Straight Centrifugal pumps is designed for continuous-duty low pressure OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Self-cleaning impellers to prevent clogging and minimize maintenance.
AMT Centrifugal pumps are reliable, cost effective and low maintenance. Many are readily available "Off-the Shelf" for fast 24 hour shipment. For use with non-flammable liquids compatible with pump component materials.

 View Curves      View Spec Sheet

Catalog Sheet
