STRAIGHT CENTRIFUGAL PUMPS 56J FRAME

AMT-STRAIGHT CENTRIFUGAL PUMPS | AMT-HIGH HEAD STRAIGHT CENTRIFUGAL PUMPS | AMT-STAINLESS STEEL STRAIGHT CENTRIFUGAL PUMPS | AMT-STRAIGHT CENTRIFUGAL PEDESTAL PUMPS
HIGH HEAD STRAIGHT CENTRIFUGAL PUMPS

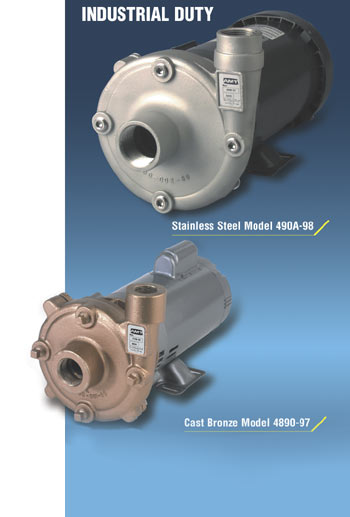

  • Available in: Investment Cast 316 Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller
  • Mechanical Seal Options: Buna-N, Viton®, and Silicon Carbide
  • 1" to 1-1/2" NPT Port Sizes, Discharge Port Rotates in 90° Increments
  • Available with Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) 56J Motors
  • 1/2 HP to 3 HP Single and Three Phase 3450 RPM Motors
  • Delivers up to 118 GPM and 65 PSI

AMT High Head Straight Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling, sprinkler/fire protection systems and pressure boosting. These heavy duty high pressure pumps are available in a variety of construction and seal materials to meet your specification. High efficiency impellers maximize performance.
AMT Centrifugal pumps are reliable, cost effective and low maintenance. Many are readily available "Off-the-Shelf" for fast 24 hour shipment. For use with non-flammable liquids compatible with pump component materials.

 View Curves      View Spec Sheet

Catalog Sheet
