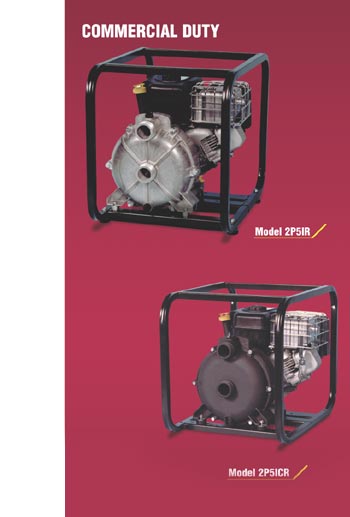

HIGH PRESSURE

  • Cast Iron or Die Cast Aluminum Construction
  • Mechanical Seal: VitonŽ/Silicon Carbide
  • 2" NPT Port Size
  • Self-Priming up to 18 ft.
  • Powered by B&S, Honda or Yanmar Diesal Engines
  • Available in 5.5 to 6.5HP
  • Delivers up to 120 GPM, and 88 PSI

These Pumps are capable of developing 75 lbs. of pressure at 30 GPM: use for fire protection or irrigation. Available with a wide choice of standard and heavy-duty engines for gasoline and diesel fuels. Unit is standard with die-cast aluminum housing and impeller or Cast-Iron, G-Ruff Coat TeflonŽ* housing with bronze impeller. All models standard with EPDM elastomers, VitonŽ fitted silicon-carbide self-lubricated seal.
