FIRE PUMPS

  • Aluminum Construction
  • Mechanical Seal: Viton® w/ Carbon & Ni-Resist Faces
  • 2.5" x 1.5" and 2.5" x 2.5" Port Sizes
  • Self-Priming up to 25 ft.
  • Powered by Kohler Engines
  • Available in 13 or 23HP
  • Delivers up to 260 GPM, and 156 PSI

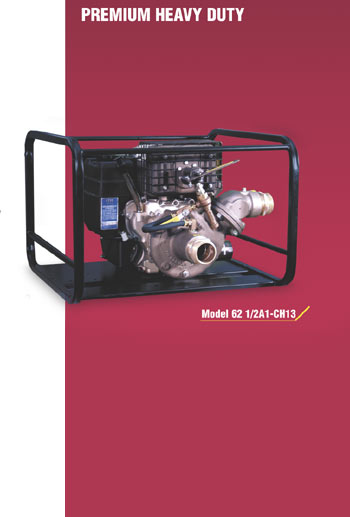

The Gorman-Rupp line of Engine Driven High Pressure fire pumps deliver up to 156 PSI and 260 gallons per minute of flow. They are equipped with an exhaust primer and can handle solids up to 5/16" diameter. All units have a built-in check valve and include a discharge pressure gauge , brass hose adapters - NPT to National Fire Hose Threads, and a suction strainer. Pump suction and discharge threads are NPT . A portable 6.5 gallon fuel tank with a 6 foot fuel line and primer bulb is standard with 62 1/2D1-CH23 S/G. 13 HP or 23 HP Kohler engines are standard.


 View Curves      View Spec Sheet

Catalog Sheet
