HIGH PRESSURE / FIRE FIGHTING ENGINE DRIVE

IPT-High Pressure | AMT-High Pressure | Gorman-Rupp-Engine Driven Fire
IPT-Pedestal Drive | AMT-Pedestal Drive
HIGH PRESSURE PUMPS

  • Cast Iron or Cast Aluminum Construction
  • Mechanical Seal Options: Buna N or Viton®
  • 1.5" NPT Port Size
  • Self-Priming up to 20 ft.
  • Powered by B&S or Honda OHV Engines
  • Available in 4.7 to 6.5HP
  • Delivers up to 82 GPM, and 103 PSI

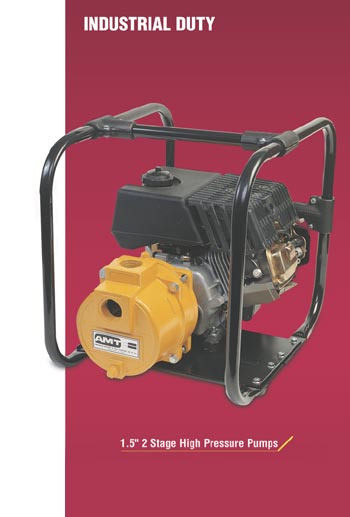

The AMT line of Engine Driven High Pressure pumps is designed for lawn sprinkling, agricultural spraying, dewatering, fire fighting, emergency water supply and pressure boosting. Single stage models feature replaceable Cast Iron dual volutes and semi-open impellers that can handle 1/8" diameter solids. Two-stage models feature Cast Iron diffusers and Stainless Steel closed impellers for high efficiency producing up to 103 PSI that generally requires 8 horsepower or more from a single stage pump.
AMT Engine Driven High Pressure pumps are reliable, cost effective and low maintenance. Many are readily available "Off-the-Shelf" for fast 24 hour shipment. For use with non-flammable liquids which are compatible with pump component materials.

 View Curves      View Spec Sheet

Catalog Sheet
