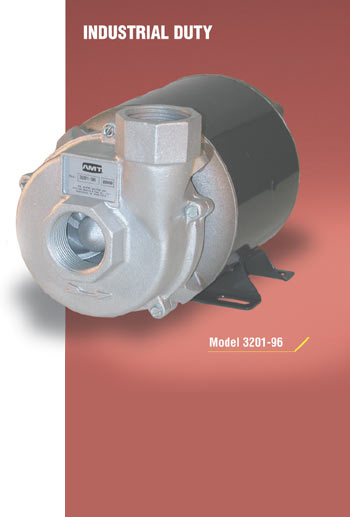

GENERAL PURPOSE LAUNDRY TRAY PUMPS

  • Cast Aluminum Construction
  • Buna-N Mechanical Seal and O-Ring
  • 1-1/4" NPT Suction and Discharge Port
  • Self-cleaning, Semi-open Impeller
  • 1725 RPM, 1/4 HP 115VAC Single Phase Open Drip Proof (ODP) 48Z Frame Continuous Duty Motor
  • Delivers up to 24 GPM and 5 PSI

The AMT Laundry Tray pump is a single stage, multi-vane open impeller unit. It is designed as a “laundry tray” pump but can be used for most gravity fed general service pumping applications. The open impeller design makes it particularly adaptable to dirty as well as clean liquids and is inherently resistant to clogging. The AMT Laundry Tray pump is readily available “Off-the-Shelf” for fast 24 hour shipment. For use with non-flammable liquids compatible with pump component materials.
