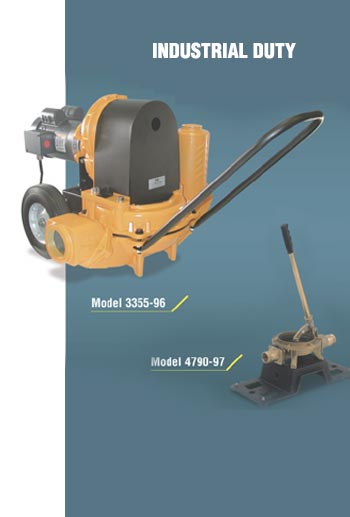

The redesigned AMT line of 3" Diaphragm
pumps features
2-stage, 44 to 1 gear reduction with a large diameter output gear and
heavy duty ball bearing construction. Often referred to as Mud pumps or
Sludge pumps, diaphragm pumps are designed to pump mud, slurry, sewage,
and thick liquids that have the ability to flow. AMT Diaphragm pumps are
available with a choice of drivers to meet your application
requirements. Each unit includes a 3" NPT steel suction strainer, two 3"
NPT nipples, and a wheel kit with 10" semi-pneumatic transport wheels
for portability. Pumps are designed for use with non-flammable liquids
which are compatible with pump component materials.
1-1/2" Hand Operated Diaphragm Pump
is designed for the transfer of fresh or salt water containing sand,
small stones and debris. Neoprene diaphragm and flapper valves. The unit
is equipped with an 18" brass handle and cast iron pumping platform with
built in handle storage.
*Hand pumps are designed for use with liquids which are compatible with
pump component materials. |
