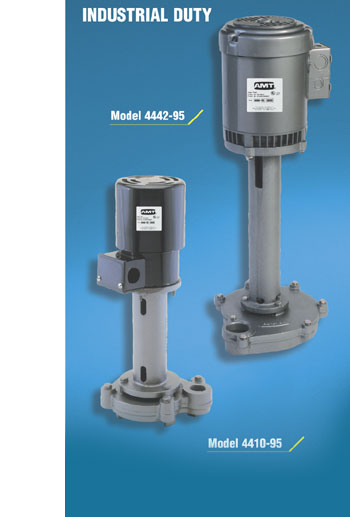

HEAVY DUTY INDUSTRIAL COOLANT PUMP

  • Cast Iron Casing and Column
  • 3/8" to 1-1/2" NPT Discharge Port Sizes
  • No Bottom Bearing and Handles Viscosities to 500 SSU
  • Includes Universal Mounting Bracket
  • Self-cleaning, Stainless Steel Impeller
  • 1/8 to 3/4 HP Totally Enclosed Fan Cooled (TEFC) Single or 3 phase Motor, 1725 RPM
  • Deliver up to 67 GPM and 44 PSI

The AMT Heavy Duty Industrial Coolant pump has been designed for a broad range of Industrial/Commercial coolant and recirculating applications. All models with extended shafts are fitted with aligning coupling between motor and shaft with no bottom bearing. A Universal mounting bracket system is included with these pumps to simplify the pump installation/removal process and expand the application range for each pump in the line.
AMT Coolant pumps are reliable and economical. For use with non-flammable liquids. Compatible with pump component materials.

  View Curves      View Spec Sheet

Catalog Sheet
